My next question I want to get a trailing stop loss based on a "breakeven" price point using the losses calculation and have come with the following:

For each position will use the last opened order as a reference point and then I want to check if the current open trades profit is more than the losses and record the current price then I want to add 15 pips for a profit above breakeven

Im not sure if that is the right way or if using a formula for the current market price less open price of the last order in loop
Lets say the last opened order as a reference point (ie 0 pips) and my breakeven condition is at 20 pips below that order and I want 15 pips profit from there
so the trailing stop will need to start from an offset from the open price 35 pips

Am I on the right track or is there another way to do it?

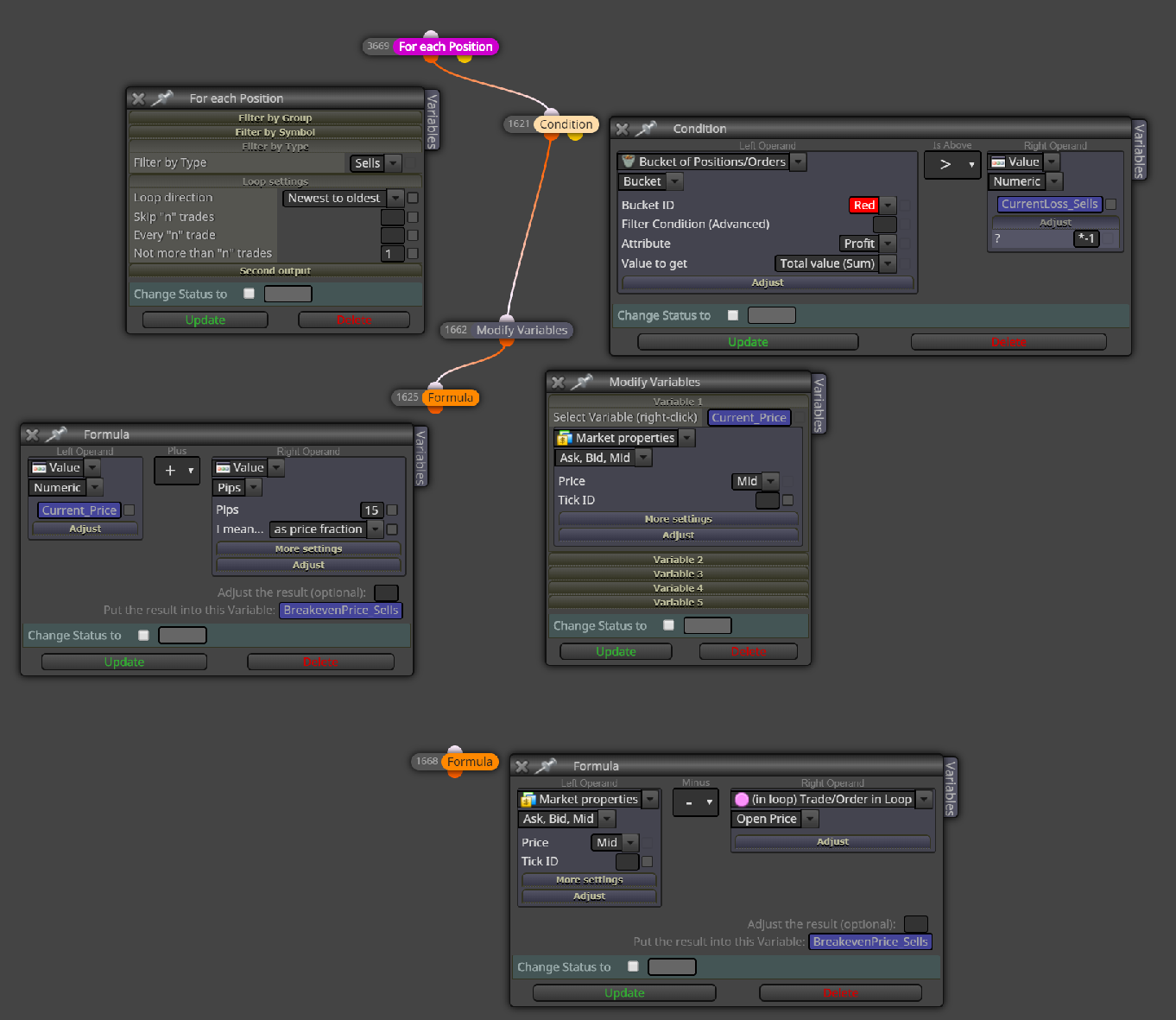

@fxdreema Thanks but a comment wont help as I need to add them in variables so I could do this, Does that look right? Im only working with sell orders to keep it simple so the filter setting are all for sells only

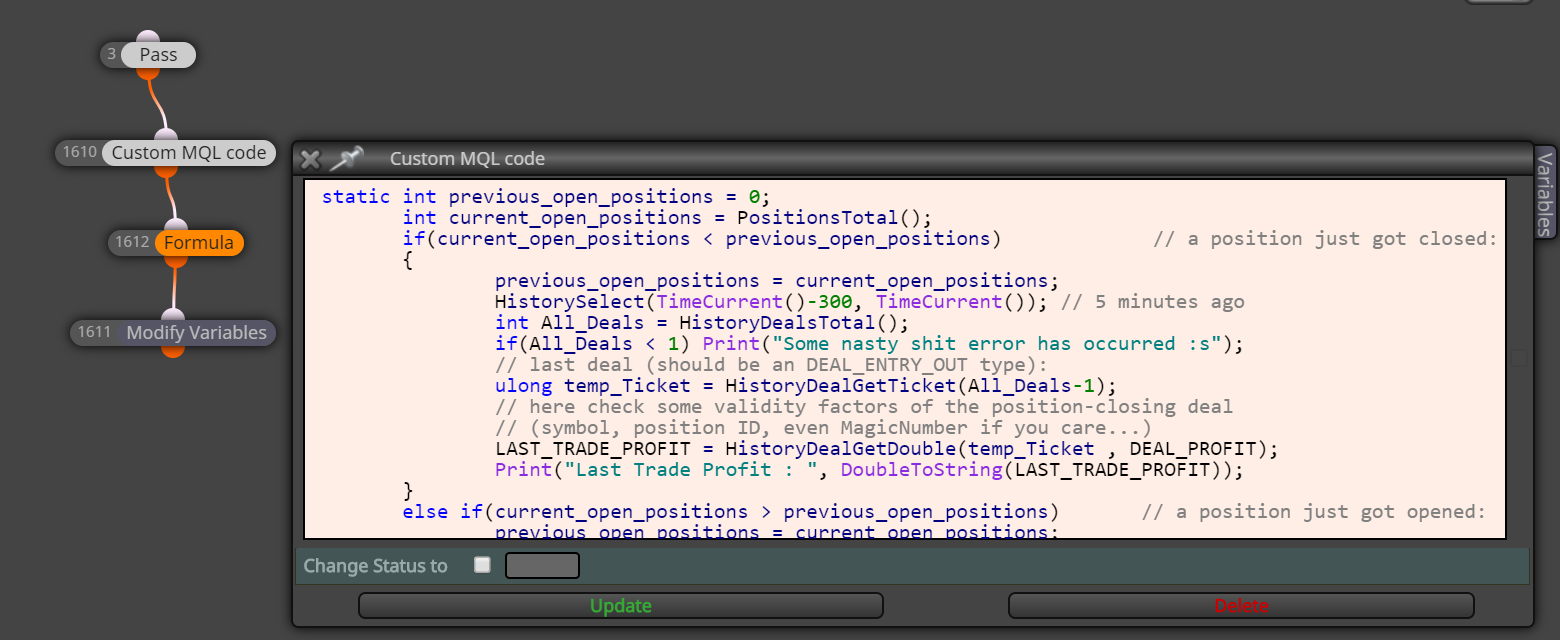

Ok thanks for the info seems easy enough although in the meantime I got it to work using a "custom MQL code" ontick with the following:

static int previous_open_positions = 0;
int current_open_positions = PositionsTotal();
if(current_open_positions < previous_open_positions) // a position just got closed:
{
previous_open_positions = current_open_positions;
HistorySelect(TimeCurrent()-300, TimeCurrent()); // 5 minutes ago
int All_Deals = HistoryDealsTotal();
if(All_Deals < 1) Print("Some nasty shit error has occurred :s");
// last deal (should be an DEAL_ENTRY_OUT type):
ulong temp_Ticket = HistoryDealGetTicket(All_Deals-1);
// here check some validity factors of the position-closing deal
// (symbol, position ID, even MagicNumber if you care...)
LAST_TRADE_PROFIT = HistoryDealGetDouble(temp_Ticket , DEAL_PROFIT);
Print("Last Trade Profit : ", DoubleToString(LAST_TRADE_PROFIT));
}
else if(current_open_positions > previous_open_positions) // a position just got opened:
previous_open_positions = current_open_positions;

Then I just made the "LAST_TRADE_PROFIT" the variable I can use

I have multiple trades open, one trade closed at loss, in the trade history it show a loss for eg: -11.50$

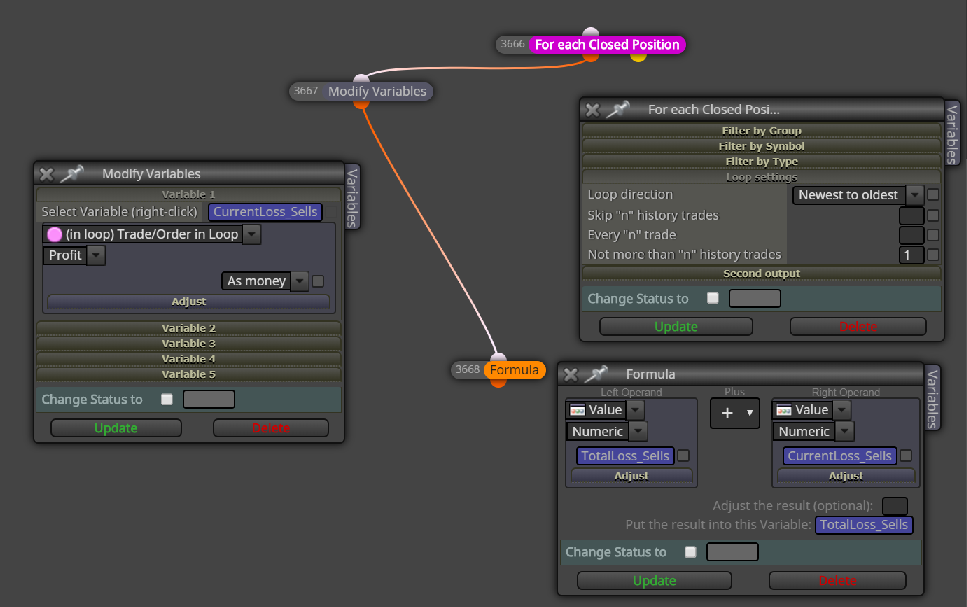

How can I get that value? Ie I want to add these up and display the total

All the blocks that do checks for profit or loss are all comparing it <>= etc to some figure, but how do I get that actual amount?

I want this amount

looks interesting but at the same time might something weird going on, could you please share a link to what you have done?

he doesnt have it, is there perhaps another way to use the signals from his indicator?

from what I can see you uploading the ex4 file and not the source code mq4 file, can you share the mq4 file and I will try get it working for you?

Ok so how can I get it to draw the lines where traling SL would start

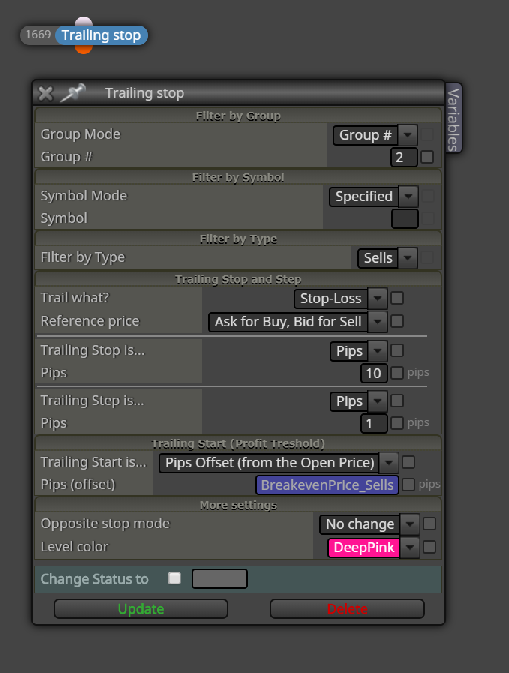

I have a issue with Trailing stop (group of trades). Seems to work fine and I see the SL line trailing the group of trades after conditions are met
In the more setting part it shows selection for a color I assumed to draw a line where the Trailing stop for the group will start but it doesnt matter what color I choose it doesnt draw a line. Is there something else I have to do? Or was my understanding wrong?

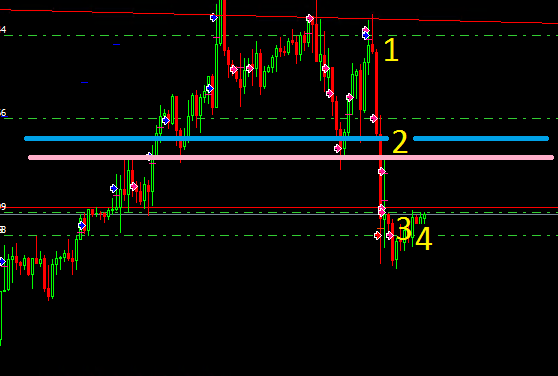

For example looking at the picture attached,

lets say I opened 4 trades all the same lot size and equal pips apart to make it simple
Trade 1 2 3 are equal spacing with trade 4 right below trade 3
The break even point should be around the pink line and the Trailing stop (group of trades) with 10 pips profit should be at the blue line
In more numbers and complicated spacing that line should move around on the chart.

Ie the concept is to get an idea of where the market needs to go to before the Trailing stop (group of trades) kicks in

Thanks Ill test it out
I have a similar issue with Trailing stop (group of trades). Seems to work fine and I see the SL line trailing the group of trades after conditions are met
In the more setting part it shows selection for a color I assumed to draw a line where the Trailing stop for the group will start but it doesnt matter what color I choose it doesnt draw a line. Is there something else I have to do?
